Sliding Windows

Sliding Windows are a Horizontal Slider, great for when space is limited or you cannot have a swinging sash. Hardware ranges depending on the type of sliding window being fabricated.

Basic Design Details:

  • 1-3/8″ Thick sash
  • Annealed glass
  • 2″ Stiles and top rail (on face)
  • 3″ Bottom rail (on face)

Species & Finishing:

  • Douglas Fir ( stain or paint grade )
  • Red Oak
  • White Oak
  • African Mahogany
  • Birch
  • Teak
  • Special Species by Request

Models:

  • One Lite XO or OX

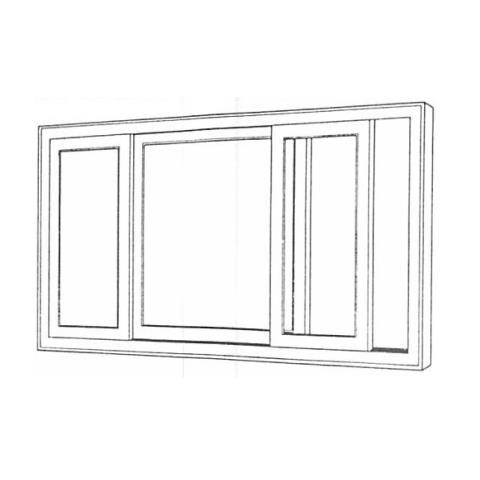

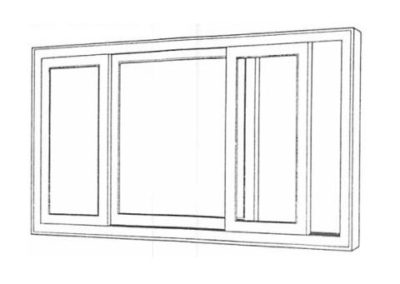

  • One Lite XOX 3 Equal
  • One Lite XOX 1/4″-1/2″-1/4″
  • TDL Lite XO or OX
  • TDL Lite XOX 3 Equal
  • TDL Lite XOX 1/4″-1/2″-1/4″
  • Marginal Lite XO or OX ( Queen Anne )
  • Marginal Lite XOX 3 Equal ( Queen Anne )
  • Marginal Lite XOX 1/4″-1/2″-1/4″ ( Queen Anne )

Framing Detail

Standard Design:

  • 4-1/8″ Jamb
  • Fully Weatherstriped
  • E-Z Set for easy installation

Sill Details:

  • 7° Redwood sill
  • 5/8″ Drywall relief at sill
  • Sill pans

New Construction Features:

  • Flashing paper with redwood stucco mould
  • Mounting clips

Glazing Options

Single-Glazed:

  • annealed clear, grey, or frosted glass
  • tempered clear, grey, or frosted glass
  • laminated clear or white glass
  • tempered textured glass
  • annealed textured glass

Insulated Dual-Glazed:

  • soft and hard coat low-e ( specify factors )
  • annealed clear grey or frosted glass
  • tempered clear, grey, or frosted glass
  • laminated clear or white glass
  • tempered textured glass
  • annealed textured glass

Hardware Details

  • White weatherstripping (bronze optional)
  • white hardware (bronze optional)
  • White screens (bronze optional)

Screens cannot always be used with all versions of the casement windows.

Ordering Specifications

  • OD sizes for your unit
  • Lite design
  • Model ( XO, OX, XOX, etc… )
  • Species desired ( standard is paint grade )
  • Glazing desired ( standard is 6mm Clear Laminated )
  • Hardware finish ( standard is white )
  • Custom / Special hardware needed!
  • Custom design details ( shops must be completed and approved )
