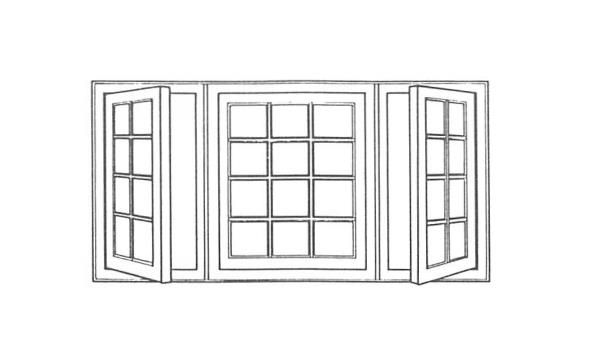

Casement Window

Casement Windows are a swinging window, Hardware ranges depending on the type of casement window being fabricated. Some casements are push out with controller hardware to keep them from over swinging while other have full crank hardware

Basic Design Details:

  • 1-3/8″ Thick sash
  • Annealed glass
  • 2″ Stiles and top rail (on face)
  • 3″ Bottom rail (on face)

Species & Finishing:

  • Douglas Fir ( stain or paint grade )
  • Red Oak
  • White Oak
  • African Mahogany
  • Birch
  • Teak
  • Special Species by Request

Models:

  • Rabbeted Casement
  • French Casement
  • Push Out Casement
  • Crank Casement
  • Automatic Casement

Framing Detail

Standard Design:

  • 4-1/8″ Jamb
  • Fully Weatherstriped
  • E-Z Set for easy installation

Sill Details:

  • 7° Redwood sill
  • 5/8″ Drywall relief at sill
  • Sill pans

New Construction Features:

  • Flashing paper with redwood stucco mould
  • Mounting clips

Glazing Options

Single-Glazed:

  • annealed clear, grey, or frosted glass
  • tempered clear, grey, or frosted glass
  • laminated clear or white glass
  • tempered textured glass
  • annealed textured glass

Insulated Dual-Glazed:

  • soft and hard coat low-e ( specify factors )
  • annealed clear grey or frosted glass
  • tempered clear, grey, or frosted glass
  • laminated clear or white glass
  • tempered textured glass
  • annealed textured glass

Hardware Details

  • White weatherstripping (bronze optional)
  • white hardware (bronze optional)
  • crank operators and other special hardware additional
  • White screens (bronze optional)

Screens cannot always be used with all versions of the casement windows.

Ordering Specifications

  • OD sizes for your unit
  • Lite design
  • Model ( single, double, etc.. )
  • Species desired ( standard is paint grade )
  • Glazing desired ( standard is 6mm Clear Laminated )
  • Hardware finish ( standard is white )
  • Custom / Special hardware needed!
  • Custom design details ( shops must be completed and approved )
